板材切割装备

HKNC-400L CNC Bridge Saw with ConveyorsHKNC-400L 流水线桥式切割机

领跑智能制作新“石”代

HKNC-400L CNC Bridge Saw with ConveyorsHKNC-400L 流水线桥式切割机

所在区域企业品牌： 所属的种别：材料割孔设备

想领会更多相干产物信息，请接洽咱们！

0594-2197723
hualongmc@163.com
我要征询
  • 产物申明
  • 手艺参数

带保送装配的数控桥式锯床
HKNC-400L 是一款高产量的全数控节制桥梁锯，专为实现最大切割速率而设想，能够或许消弭一切装载板坯、编程功课和卸载部件所形成的停机时候。
该桥梁锯具有全 5 轴数控锯的一切功效和矫捷性，还装备了专利的部件切割与挪动装配——该装配集成在一个永不停息任务的现实切割线上。主动板坯装载机从正面延续为机器供料，与驱动板坯经由进程锯下方切割地区并从另外一侧卸下切割件和剩余物的传递带同步运转。

首要特色
1) 主动装载平台 - 节流装载时候和人力。
2) 因为激光节制传递带，工件定位敏捷且高效。
3) 经由进程野生智能视觉手艺主动检测板坯地位。
4) 易于编程和操纵 - 能够长途编程、提早编程或在机器节制状况下几分钟内实现编程，同时机器仍在切割进程中。
5) 主动板坯切割优化的嵌套软件，可最大限制削减华侈并优化加工时候。

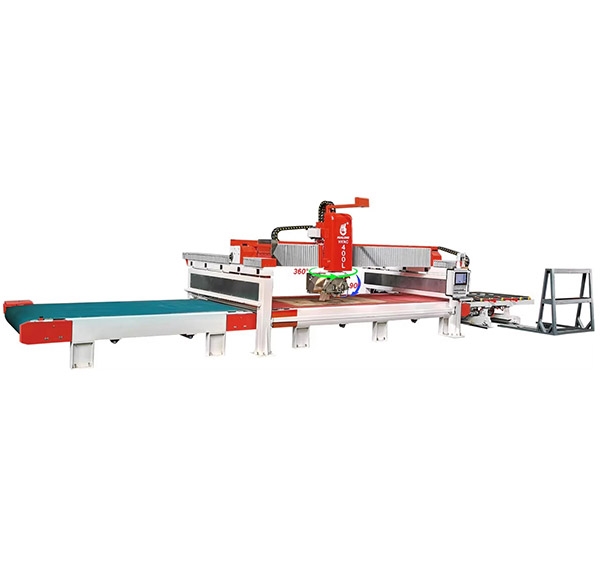

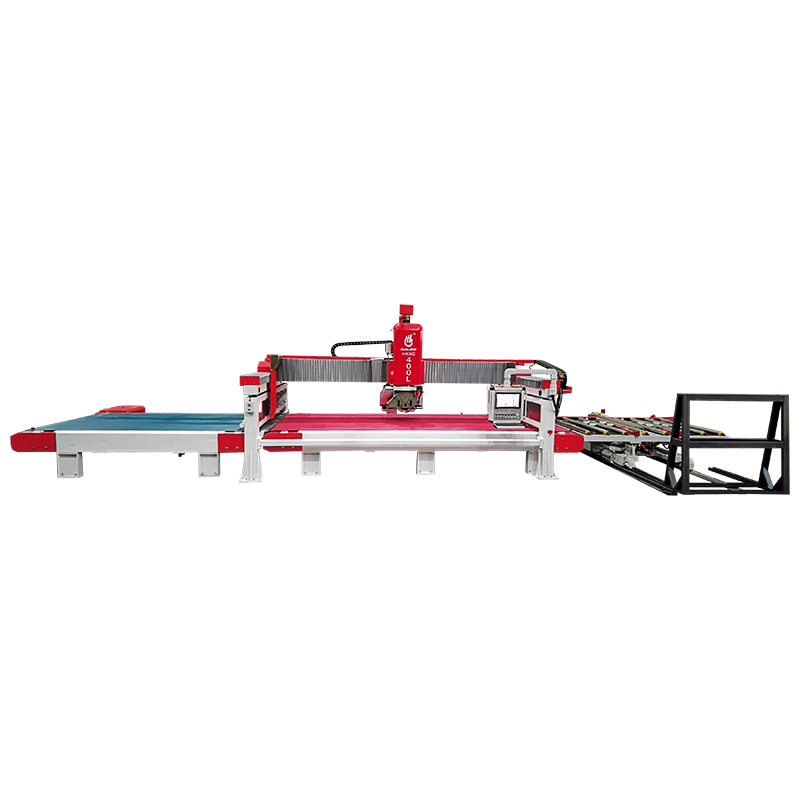

CNC Bridge Saw with Conveyors
HKNC-400L  is a high-production full CNC-controlled bridge saw designed for the maximum speed in cutting and eliminating all down times for loading slabs, programming jobs and unloading pieces.
The bridge saw is equipped with all of the functionality and versatility of a full 5-axis CNC saw, also equipped with the patented manipulator of the pieces Cut & Move — integrated in a real cutting line that never stops working.  An automatic slab loader continuously feeds the machine from the side, synchronized with conveyor belts that drive the slabs through the cutting area under the saw and outfeed cut pieces and remnants from the other side.
Main Features
1) Automatic loading platform – saving loading time and labor.
2) Quick automatic workpiece positioning thanks to the laser that controls the conveyor belt.
3) Slab position automatically detected by Artificial Vision.
4) Easy to program and operate – It can be programmed remotely, in advance or at the machine control in a few minutes while the machine is cutting.
5) Nesting software for automatic slab cutting optimization, minimize the waste and optimize the processing time.

参数 NAME 单元 UNIT HKNC-400L
锯片直径 Diameter of saw blade mm 350-400
任务台规格 Carriage stroke (X-axis) mm 3500
最大切割尺寸 Carriage stroke (Y-axis) mm 2000
加载器尺寸 Loader size mm 3076 x 3000
主保送机尺寸 Main conveyor size mm 12290 x 2100
输入台尺寸 Output conveyor size mm 8490 x 2100
锯片转速 Blade rotation speed rpm 0-3500
最大加工厚度 Max. cutting thickness mm 80
最大起落路程 Max. lifting stroke mm 250
吸盘最大举升分量 Max. lifting weight by sunction cups kg 200
主机功率 Power of main motor kw 15
刀架来去机电功率 Power of cutter frame reciproctating motor kw 2
大梁挪动机电功率 Power of crossbeam shifting motor kw 1.1
液压站机电功率 Power of hydraulic station motor kw 2.2
起落机电功率 Power of lifting motor kw 0.85
总功率 Gross power kw 24.75
耗水量 Water consumption m3/h 2
总分量 Gross weight kg 13000
机床最大尺寸 Dimensions (L x W x H) mm 13100x3685x3250
